DB2 Version 9.7 for Linux, UNIX, and Windows

Network installation of IBM Data Server Driver Package (Windows)

To set up a network installation of IBM Data Server Driver Package, you install the code on a code server, rather than on each client workstation, and make the code available to remote client workstations through a network share. You run the db2dsdpreg utility to set up each remote client workstation and make the required links to the code server. When a registered remote client initiates a database connection, the driver code is dynamically loaded from the code server as required. The remote client then connects to the database in the typical way. When you update the installed IBM Data Server Driver Package, the updated code is automatically available to the remote client workstations.

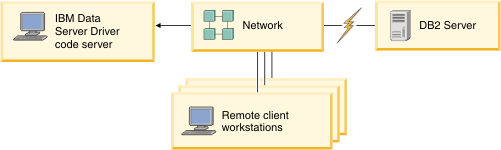

The following figure shows a network installation of IBM Data Server Driver Package.

Figure 2. A typical network installation of IBM Data Server Driver Package

Setting up a network installation of IBM Data Server Driver Package (Windows)

About this task

Perform the following steps to set up a network installation of IBM Data Server Driver Package on a code server and make the code accessible from a remote client workstation.

Procedure

To set up a network installation:

1. Install IBM Data Server Driver Package on the code server.
2. Make the code directory on the code server available to all remote client workstations.
3. Map a network drive from each remote client workstation to the code server.
4. Register each remote client workstation by running the db2dsdpreg utility.

Making the code directory available to remote client workstations (Windows)

Before you begin

You must install IBM Data Server Driver Package on the code server.

About this task

The following procedure uses Windows XP as an example to show how to make the code directory available to all remote client workstations (in read mode).

Procedure

To make the code directory available to all remote client workstations:

1. On the code server, start Windows Explorer.
2. Select the directory on the code server that will be used to serve client workstations. For this example, select the C:\Program Files\IBM\IBM DATA SERVER DRIVER directory to set up the share.
3. Select File -> Properties from the menu bar.
4. Click the Sharing tab.
5. Click the Shared This Folder radio button.
6. In the Share Name field, enter a share name that is eight characters or fewer. For example, enter DSDRVRSV.
7. Provide read access to the code directory to all client users:
   1. Click Permissions. The Share Permissions window opens.
   2. In the Group or Users Name list, highlight the Everyone group.
      Note:
      You can give access to the Everyone group, to a group that you have specifically defined for remote client users, or to individual remote client users.
   3. Select Read.
   4. Click OK until all windows are closed.

Next, map a network drive from each remote client workstation to the network share on the code server.

Mapping a network drive from each remote client workstation to the code server (Windows)

Before you begin

• Make the code directory on the code server available to all remote client workstations.
• Log on to the remote client workstation as a valid user with shared directory access to the code server.

About this task

The following procedure uses Windows XP as an example to show how to map a network drive from the remote client workstation to the network share on the code server.

Procedure

To map a network drive from the remote client workstation:

1. On the remote client workstation, start Windows Explorer.
2. On the Tools menu, click Map Network Drive.
3. In the Drive list, select the drive to which you want to map the location of the code server.
4. In the Folder field, specify the location of the share as follows:

   \\computer_name\share_name

   where:

   computer_name

   represents the computer name of the code server

   share_name

   represents the share name of the shared directory on the code server

5. Select the Reconnect at Logon check box to make the share persistent.
6. Click Finish.

Next, register each remote client workstation to allow remote clients to use the network installation of IBM Data Server Driver Package as if the code is installed locally.

Registering remote client workstations by running the db2dsdpreg utility (Windows)

Before you begin

• Map a network drive from the remote client workstation to the code server.
• Ensure that either Microsoft® Visual C++ 2005 or the appropriate runtime components of the Visual C++ libraries are installed. The runtime libraries are available from the Microsoft runtime library download Web site. For 32-bit systems, install vcredist_x86.exe. For 64-bit systems, install vcredist_x86.exe and vcredist_x64.exe.
• Log on to the remote client workstation as a valid user with shared directory access to the code server. You must have administrator level privileges on the remote client workstation.

About this task

Perform the following steps on each remote client workstation that needs to use the network installation of IBM Data Server Driver Package.

Procedure

To register a remote client workstation:

1. From a Windows command prompt, issue the following command, where z is the network drive that you mapped to the code server:

   cd z:\bin

2. Issue the following command to run the db2dsdpreg utility and write logging information to a file:

   db2dsdpreg /l c:\db2dsdpreg.log

   where c:\db2dsdpreg.log is the path where the utility will create the log file. If you do not specify a path for the log file, it is created under My Documents\DB2LOG for the current user.
   Tip:
   You can view additional registration options, including options to unregister and reregister, by issuing the following command: db2dspreg /h.
3. When the db2dsdpreg utility is done, check the messages in the log file (for example, c:\db2dsdpreg.log).

   The log file contains error messages for any errors that are encountered when you run the utility.
