Before exploring the expression data, I want to obtain a list of mutation features that help predict COO. Here, I define mutation features as being a mutated hotspot or gene. This information will help evaluate downstream clustering solutions.

Two methods will be compared below. Both will be using the Lymphp2Cx COO labels as an approximation of ground truth. The first approach will use Fisher’s exact test to identify mutation features that are significantly associated with COO. The second approach will leverage a random forest model to rank the importance of mutation features.

Identifying Mutation Hotspots

Before ranking mutation features, we need to identify mutation hotspots, because some are known to be associated with COO (e.g. MYD88 and EZH2 hotspot mutations). For this, we are identifying recurrently altered codons, i.e. those that are present in at least 5% of patients.

hotspots <-
  muts %>%
  dplyr::group_by(gene, codon) %>%
  dplyr::mutate(num_affected = dplyr::n_distinct(patient),
                hotspot = num_affected > length(patients_rnaseq) * min_recur,
                hotspot = ifelse(type != "missense", FALSE, hotspot),
                feature = ifelse(hotspot, paste0(gene, "_", codon), paste0(gene, "_other"))) %>%
  dplyr::ungroup()

mut_features <-
  hotspots %>%
  dplyr::select(patient, feature) %>%
  dplyr::distinct() %>%
  tidyr::spread(patient, patient) %>%
  tidyr::gather(patient, status, -feature) %>%
  dplyr::mutate(mutated = !is.na(status),
                status = NULL) %>%
  dplyr::left_join(coo, by = "patient")

heatmap_mut_annot <-
  coo_annot %>%
  tibble::rownames_to_column("patient") %>%
  dplyr::filter(coo_ns %in% c("ABC", "GCB"),
                patient %in% mut_features$patient) %>%
  tibble::column_to_rownames("patient")

mut_feat_df <-
  mut_features %>%
  dplyr::mutate(mutated = ifelse(mutated, 1, 0)) %>%
  tidyr::spread(feature, mutated)

mut_feat_matrix_all <-
  mut_feat_df %>%
  dplyr::select(-coo_ns) %>%
  as.data.frame() %>%
  set_rownames(c()) %>%
  tibble::column_to_rownames("patient") %>%
  as.matrix() %>%
  t() %>%
  extract(, order(coo %>% dplyr::filter(patient %in% mut_features$patient) %$% coo_ns))

mut_feat_matrix <-
  mut_feat_matrix_all %>%
  extract(, colnames(.) %in% rownames(heatmap_mut_annot))

hotspots %>%
  dplyr::filter(hotspot) %>%
  dplyr::select(gene, codon, num_affected) %>%
  dplyr::distinct() %>%
  dplyr::arrange(desc(num_affected)) %>%
  knitr::kable(caption = "Recurrently altered gene codons (hotspots)")
Recurrently altered gene codons (hotspots)
gene codon num_affected
EZH2 646 40
BCL10 213 38
MYD88 273 37
MEF2B 83 20
CD79B 197 20
KMT2C 1685 18

Ranking Mutation Features

Approach #1: Fisher’s exact test

A simple approach to ranking mutation features is to statistically test for an association between a feature and COO status. Because this is count data, the Fisher’s exact test can be used. After performing BH multiple test correction, we filter for features with a minimum q-value of 10%.

mut_fisher <-
  mut_features %>%
  dplyr::filter(coo_ns %in% c("ABC", "GCB")) %>%
  dplyr::group_by(feature) %>%
  tidyr::nest() %>%
  dplyr::mutate(fisher = purrr::map(data, ~fisher.test(.$mutated, .$coo_ns)),
                p_val = purrr::map_dbl(fisher, "p.value"),
                q_val = p.adjust(p_val, method = p_adjust_method)) %>%
  dplyr::select(-data, -fisher) %>%
  dplyr::arrange(q_val) %>%
  dplyr::filter(q_val < qval_cutoff)

knitr::kable(mut_fisher)
feature p_val q_val
BCL2_other 0.0000000 0.0000000
TNFRSF14_other 0.0000000 0.0000000
GNA13_other 0.0000000 0.0000002
MYD88_273 0.0000000 0.0000004
SOCS1_other 0.0000018 0.0000274
CD79B_197 0.0000027 0.0000347
EZH2_646 0.0000061 0.0000684
CREBBP_other 0.0000091 0.0000884
P2RY8_other 0.0000454 0.0003936
MPEG1_other 0.0000764 0.0005956
CD79B_other 0.0001144 0.0007437
TMSB4X_other 0.0001068 0.0007437
PIM1_other 0.0001265 0.0007590
MEF2B_83 0.0002507 0.0013968
DDX3X_other 0.0030408 0.0154782
IRF8_other 0.0031750 0.0154782
ARID1A_other 0.0044460 0.0203992
IL4R_other 0.0087501 0.0359213
IRF4_other 0.0085899 0.0359213
BCL10_other 0.0125765 0.0490482
SGK1_other 0.0160632 0.0596632
HIST1H1E_other 0.0207389 0.0729165
S1PR2_other 0.0224359 0.0729165
SPEN_other 0.0217264 0.0729165
TBL1XR1_other 0.0234801 0.0732581

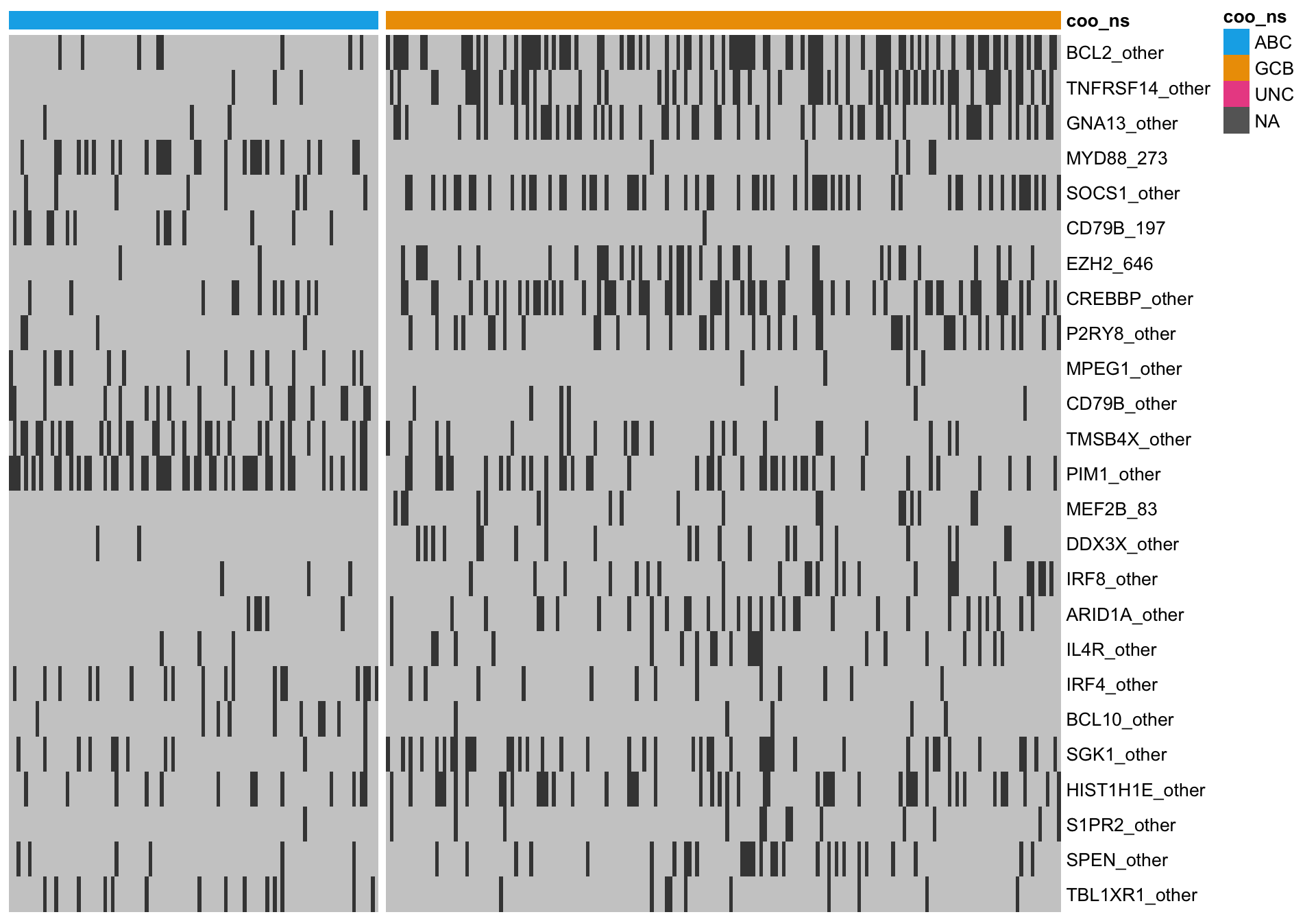

heatmap_mut_fisher <-
  mut_feat_matrix %>%
  extract(mut_fisher$feature, ) %>%
  pheatmap::pheatmap(cluster_rows = FALSE, cluster_cols = FALSE, show_colnames = FALSE,
                     color = colours$mutated, legend = FALSE,
                     annotation_col = heatmap_mut_annot,
                     annotation_colors = colours,
                     gaps_col = sum(heatmap_mut_annot$coo_ns == "ABC"))

Approach #2: Random forest

Mutation features can also be ranked using machine learning. Here, we are training a random forest model to predict COO from the mutation features. A side-product from training this model is the feature importance, which we can use as a ranking.

# Remove any features with near-zero variance
nz_feats <- caret::nearZeroVar(mut_feat_df)
abc_gcb_rows <- mut_feat_df$coo_ns %in% c("ABC", "GCB")
mut_rf_patients <- mut_feat_df[abc_gcb_rows, 1]
mut_feat_df_no_nz <- mut_feat_df[abc_gcb_rows, -c(1, nz_feats)]

mut_ctrl <- caret::trainControl(method = "cv", number = 10)

mut_model <-
  caret::train(coo_ns ~ ., mut_feat_df_no_nz, method = "rf",
               preProcess = "scale", trControl = mut_ctrl, tuneLength = 10)
mut_model
Random Forest

277 samples
 63 predictor
  2 classes: 'ABC', 'GCB'

Pre-processing: scaled (63)
Resampling: Cross-Validated (10 fold)
Summary of sample sizes: 250, 249, 250, 249, 250, 249, ...
Resampling results across tuning parameters:

  mtry  Accuracy   Kappa
   2    0.8089947  0.5438280
   8    0.8271164  0.6110994
  15    0.8234127  0.6019521
  22    0.8162698  0.5854169
  29    0.8161376  0.5873333
  35    0.8052910  0.5618670
  42    0.8052910  0.5618670
  49    0.8089947  0.5751352
  56    0.8089947  0.5726198
  63    0.8125661  0.5821159

Accuracy was used to select the optimal model using  the largest value.
The final value used for the model was mtry = 8.
mut_imp <- caret::varImp(mut_model, scale = FALSE)

mut_rf <-
  mut_imp$importance %>%
  tibble::rownames_to_column("feature") %>%
  dplyr::rename(importance = Overall) %>%
  dplyr::arrange(desc(importance)) %>%
  head(nrow(mut_fisher))

knitr::kable(mut_rf)
feature importance
BCL2_other 10.227513
TNFRSF14_other 7.529022
MYD88_273 6.400298
GNA13_other 5.593403
SOCS1_other 5.329206
CREBBP_other 4.784726
P2RY8_other 3.715943
CD79B_197 3.618199
TMSB4X_other 3.443138
EZH2_646 2.811936
PIM1_other 2.639072
MPEG1_other 2.485901
HIST1H1E_other 2.459930
CD79B_other 2.111793
BCL10_213 1.951250
KMT2D_other 1.917125
SGK1_other 1.850612
ARID1A_other 1.816322
IRF4_other 1.801406
BCL10_other 1.713638
SPEN_other 1.660783
BIRC6_other 1.622855
TP53_other 1.622377
IL4R_other 1.571859
ADAMTS12_other 1.539695
heatmap_mut_rf <-
  mut_feat_matrix %>%
  extract(mut_rf$feature, ) %>%
  pheatmap::pheatmap(cluster_rows = FALSE, cluster_cols = FALSE, show_colnames = FALSE,
                     color = colours$mutated, legend = FALSE,
                     annotation_col = heatmap_mut_annot,
                     annotation_colors = colours,
                     gaps_col = sum(heatmap_mut_annot$coo_ns == "ABC"))

Hybrid approach

Unsurprisingly, both approaches share several highly ranked features. A hybrid approach here considers the overlap between both methods, which should select the most informative genes.

All overlapping genes

When I consider the overlap, there are several genes that visually do not seem to discriminate well between ABC and GCB cases. One issue is that we are using the Lymph2Cx labels, which we guess are not perfect. Therefore, some cases might be on the right side of the heatmap, so to speak.

mut_hybrid_df <-
  mut_feat_df %>%
  tidyr::gather(feature, mutated, -patient, -coo_ns) %>%
  dplyr::filter(feature %in% intersect(mut_fisher$feature, mut_rf$feature)) %>%
  dplyr::group_by(feature, coo_ns) %>%
  dplyr::summarise(num_mutated = sum(mutated)) %>%
  tidyr::spread(coo_ns, num_mutated) %>%
  dplyr::mutate(ratio = ABC / GCB) %>%
  dplyr::arrange(ratio)

mut_hybrid_all <- mut_hybrid_df$feature

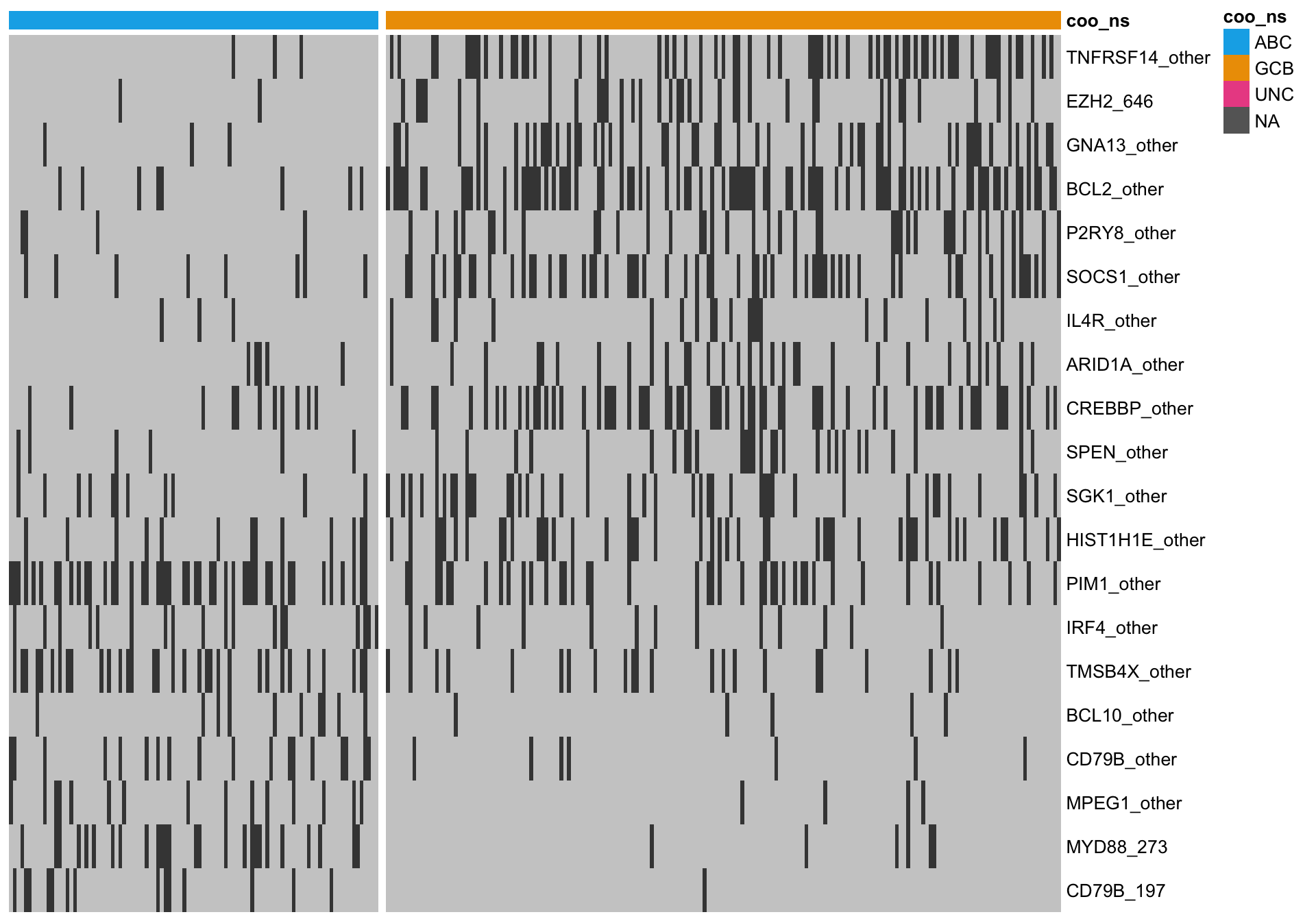

heatmap_mut_hybrid <-
  mut_feat_matrix %>%
  extract(mut_hybrid_all, ) %>%
  pheatmap::pheatmap(cluster_rows = FALSE, cluster_cols = FALSE, show_colnames = FALSE,
                     color = colours$mutated, legend = FALSE,
                     annotation_col = heatmap_mut_annot,
                     annotation_colors = colours,
                     gaps_col = sum(heatmap_mut_annot$coo_ns == "ABC"))

Most discriminating genes

Here, I’m only considering genes with the most extreme ratio of ABC-mutated cases versus GCB-mutated cases. This set of more amenable to simple counting of the number of ABC/GCB-associated mutation features.

mut_hybrid_df_top <-
  mut_hybrid_df %>%
  dplyr::filter(ratio < 0.1 | ratio > 2)

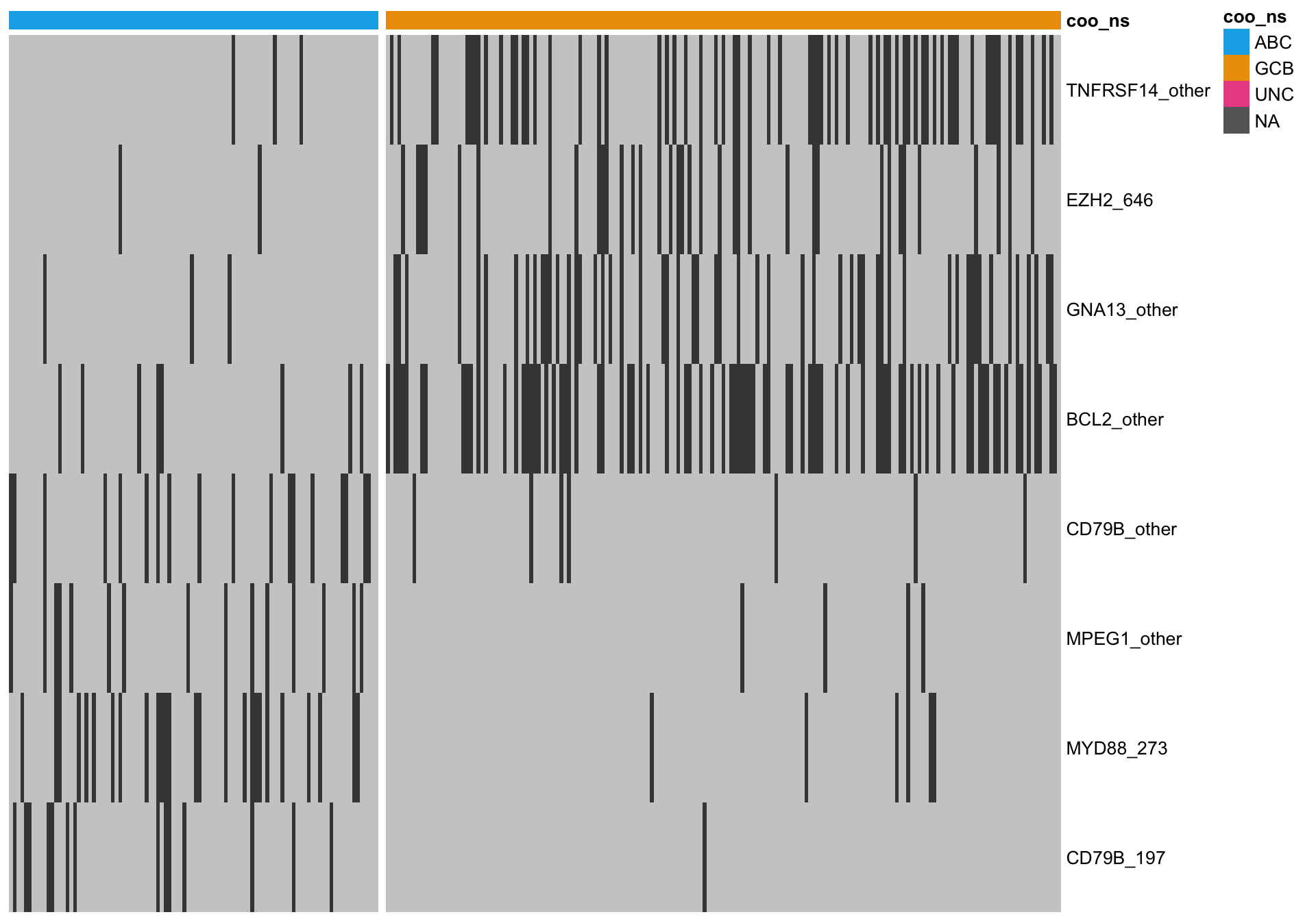

heatmap_mut_hybrid_top <-
  mut_feat_matrix %>%
  extract(mut_hybrid_df_top$feature, ) %>%
  pheatmap::pheatmap(cluster_rows = FALSE, cluster_cols = FALSE, show_colnames = FALSE,
                     color = colours$mutated, legend = FALSE,
                     annotation_col = heatmap_mut_annot,
                     annotation_colors = colours,
                     gaps_col = sum(heatmap_mut_annot$coo_ns == "ABC"))

Predicting COO

Counting discriminating features

gcb_features <- mut_hybrid_df_top %>% dplyr::filter(ratio < 1) %$% feature
abc_features <- mut_hybrid_df_top %>% dplyr::filter(ratio > 1) %$% feature

discretize <- function(x) {
  dplyr::recode(x, `0` = "0", `1` = "1", `2` = "2", .default = "3+")
}

num_feats <-
  mut_features %>%
  dplyr::filter(mutated) %>%
  dplyr::group_by(patient, coo_ns) %>%
  dplyr::summarise(gcb_num_feats = discretize(sum(feature %in% gcb_features)),
                   abc_num_feats = discretize(sum(feature %in% abc_features)))

heatmap_mut_hybrid_num_feats_annot <-
  num_feats %>%
  as.data.frame() %>%
  tibble::column_to_rownames("patient") %>%
  dplyr::ungroup()

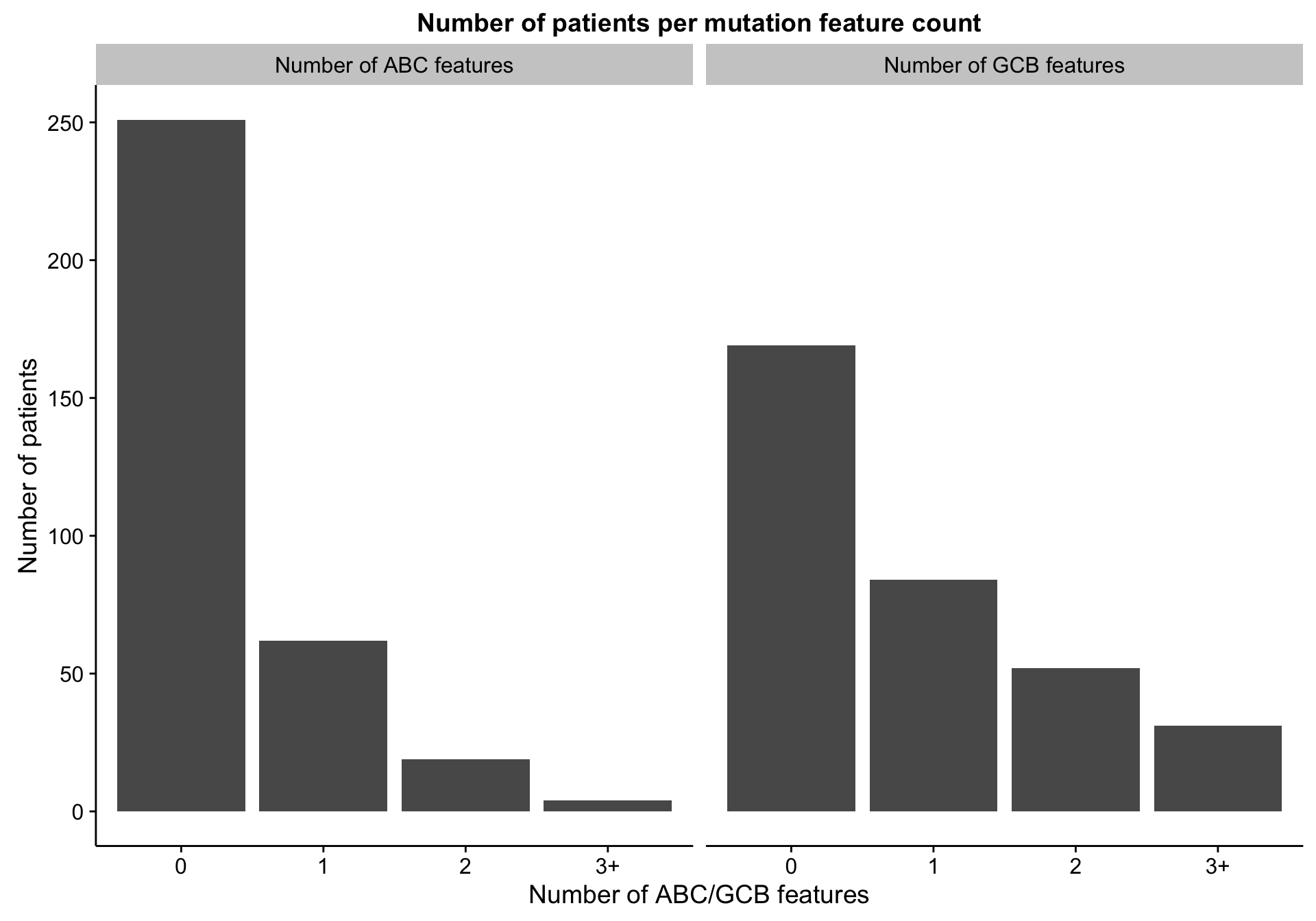

barplot_mut_hybrid_num_feats <-
  heatmap_mut_hybrid_num_feats_annot %>%
  dplyr::select(-coo_ns,
                `Number of ABC features` = abc_num_feats,
                `Number of GCB features` = gcb_num_feats) %>%
  tidyr::gather(type, count) %>%
  dplyr::count(type, count) %>%
  ggplot(aes(x = count, y = n)) +
  geom_bar(stat = "identity") +
  facet_grid(~type) +
  labs(title = "Number of patients per mutation feature count",
       x = "Number of ABC/GCB features", y = "Number of patients")
barplot_mut_hybrid_num_feats

Random forest probability

# discretize_probs <- function(x) {
#   cut(x, breaks = c(0, 0.2, 0.4, 0.6, 0.8, 1),
#       labels = c("0-20%", "20-40%", "40-60%", "60-80%", "80-100%")) %>%
#     as.character()
# }

discretize_diff <- function(x) {
  cut(x, breaks = c(-1.1, -0.6, -0.2, 0.2, 0.6, 1.1),
      labels = c("GCB 60-100%", "GCB 20-60%", "Ambiguous", "ABC 20-60%", "ABC 60-100%")) %>%
    as.character()
}

# mut_rf_prob_df <-
#   predict(mut_model, mut_feat_df_no_nz, "prob") %>%
#   dplyr::transmute(abc_rf_prob = discretize_probs(ABC),
#                    gcb_rf_prob = discretize_probs(GCB)) %>%
#   dplyr::bind_cols(mut_rf_patients)

mut_rf_prob_df <-
  predict(mut_model, mut_feat_df, "prob") %>%
  dplyr::transmute(abc_gcb_diff = discretize_diff(ABC - GCB)) %>%
  dplyr::bind_cols(mut_feat_df[,"patient"])

heatmap_mut_rf_prob_annot <-
  heatmap_mut_hybrid_num_feats_annot %>%
  tibble::rownames_to_column("patient") %>%
  dplyr::left_join(mut_rf_prob_df) %>%
  tibble::column_to_rownames("patient") %>%
  extract(, c("coo_ns", "gcb_num_feats", "abc_num_feats", "abc_gcb_diff"))

barplot_mut_rf_prob_data <-
  heatmap_mut_rf_prob_annot %>%
  dplyr::select(-dplyr::ends_with("_num_feats"),
                `P(ABC) - P(GCB)` = abc_gcb_diff) %>%
  tidyr::gather(type, prob, -coo_ns) %>%
  dplyr::count(coo_ns, type, prob) %>%
  dplyr::mutate(prob = factor(prob, names(colours$abc_gcb_diff)[1:5]))

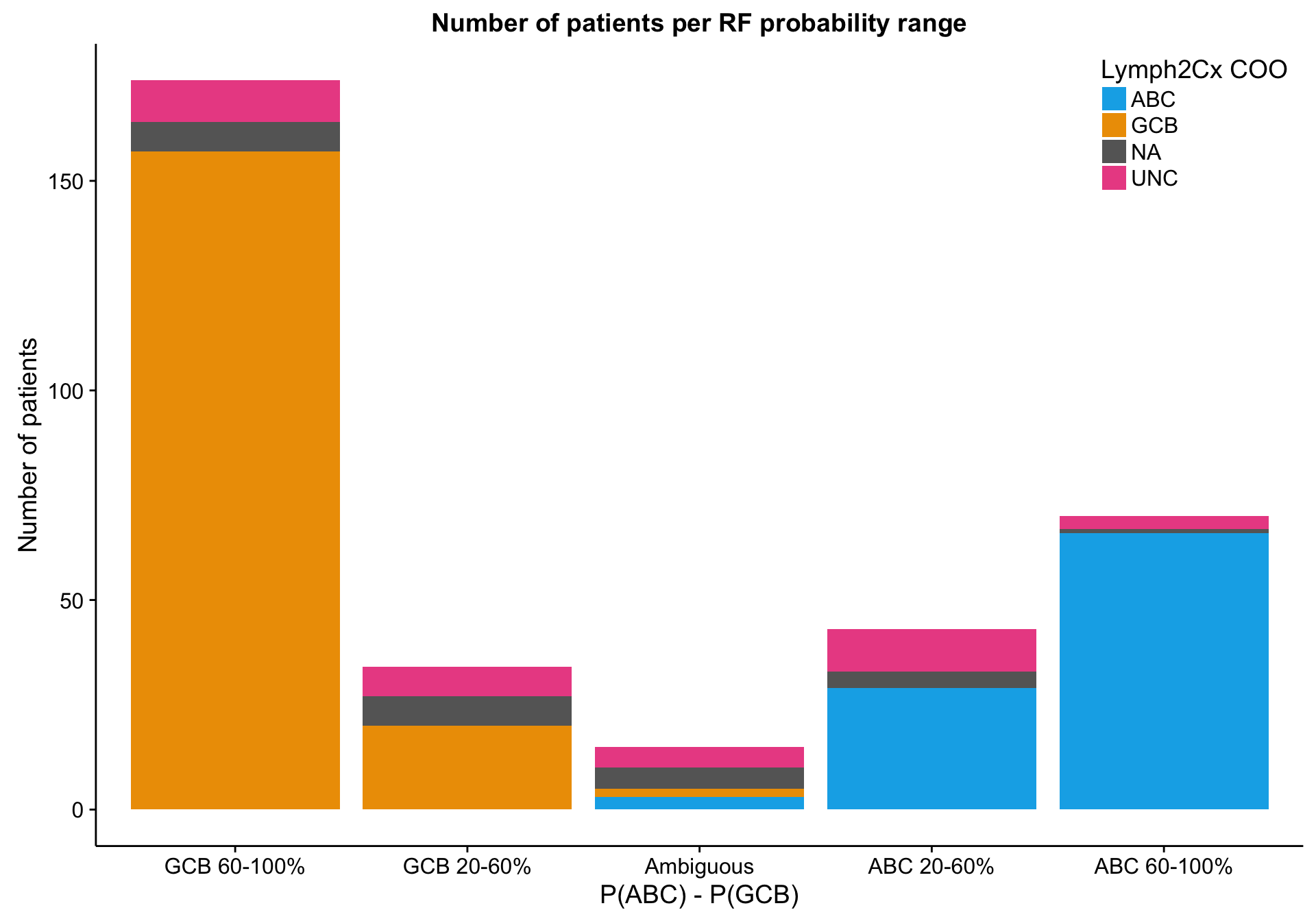

barplot_mut_rf_prob <-
  barplot_mut_rf_prob_data %>%
  ggplot(aes(x = prob, y = n, fill = coo_ns)) +
  geom_bar(stat = "identity") +
  scale_x_discrete(drop = FALSE) +
  scale_fill_manual(values = colours$coo_ns) +
  place_legend(c(1, 1)) +
  labs(title = "Number of patients per RF probability range",
       x = "P(ABC) - P(GCB)", y = "Number of patients", fill = "Lymph2Cx COO")
barplot_mut_rf_prob

patient_no_mut <-
  mut_feat_df %>%
  dplyr::transmute(patient, total = rowSums(.[, -(1:2)])) %>%
  dplyr::filter(total < 3) %$%
  patient

heatmap_mut_rf_prob_annot_no_mut <-
  heatmap_mut_rf_prob_annot %>%
  tibble::rownames_to_column("patient") %>%
  dplyr::filter(patient %in% patient_no_mut) %>%
  dplyr::select(-dplyr::ends_with("_num_feats"),
                `P(ABC) - P(GCB)` = abc_gcb_diff,
                -patient) %>%
  tidyr::gather(type, prob, -coo_ns) %>%
  dplyr::count(coo_ns, type, prob) %>%
  dplyr::mutate(prob = factor(prob, names(colours$abc_gcb_diff)[1:5]))

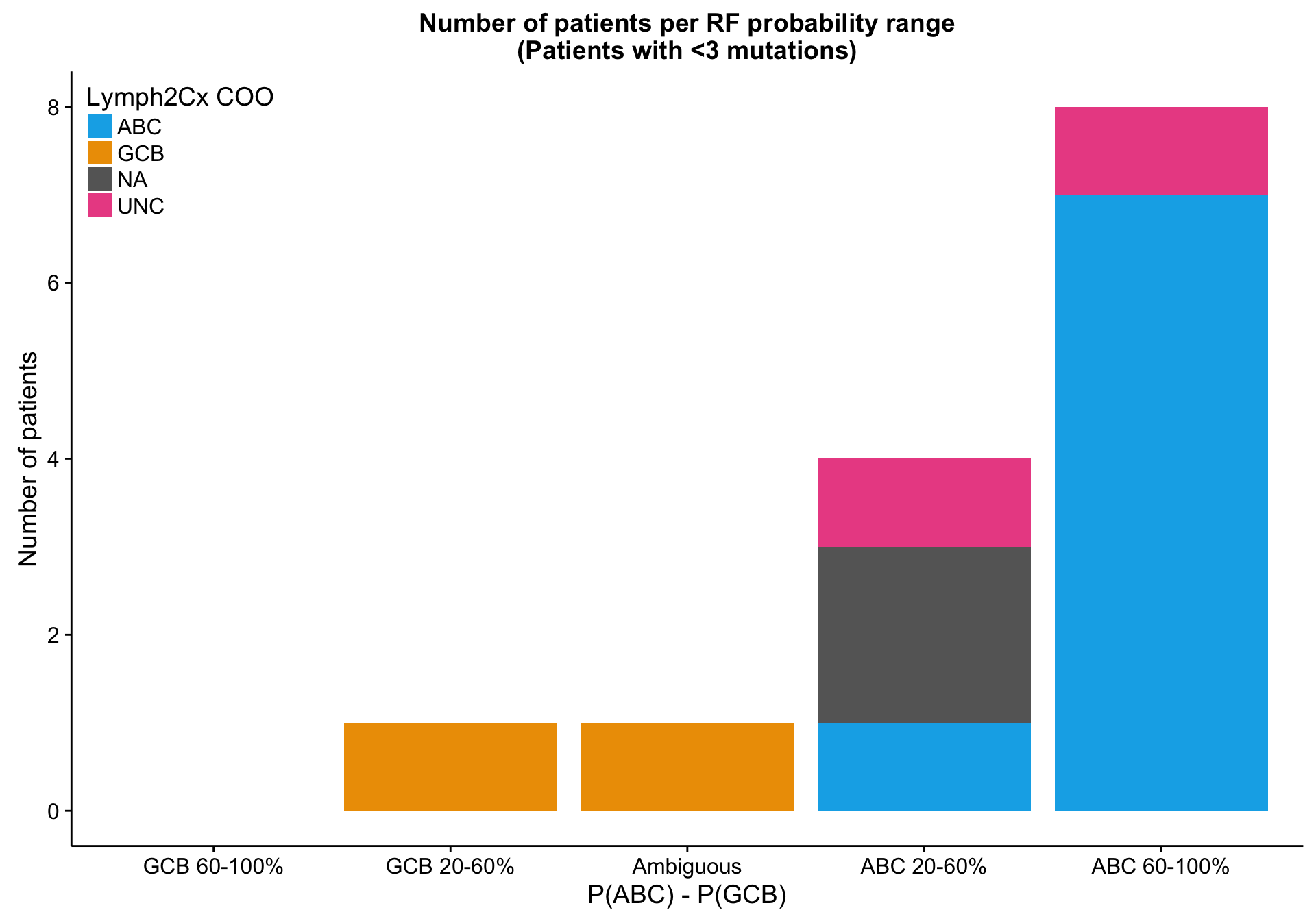

barplot_mut_rf_prob_no_mut <-
  barplot_mut_rf_prob %+%
  heatmap_mut_rf_prob_annot_no_mut +
  labs(title = paste0(barplot_mut_rf_prob$labels$title, "\n(Patients with <3 mutations)")) +
  place_legend(c(0, 1))
barplot_mut_rf_prob_no_mut

n_patients <- ncol(mut_feat_matrix_all)

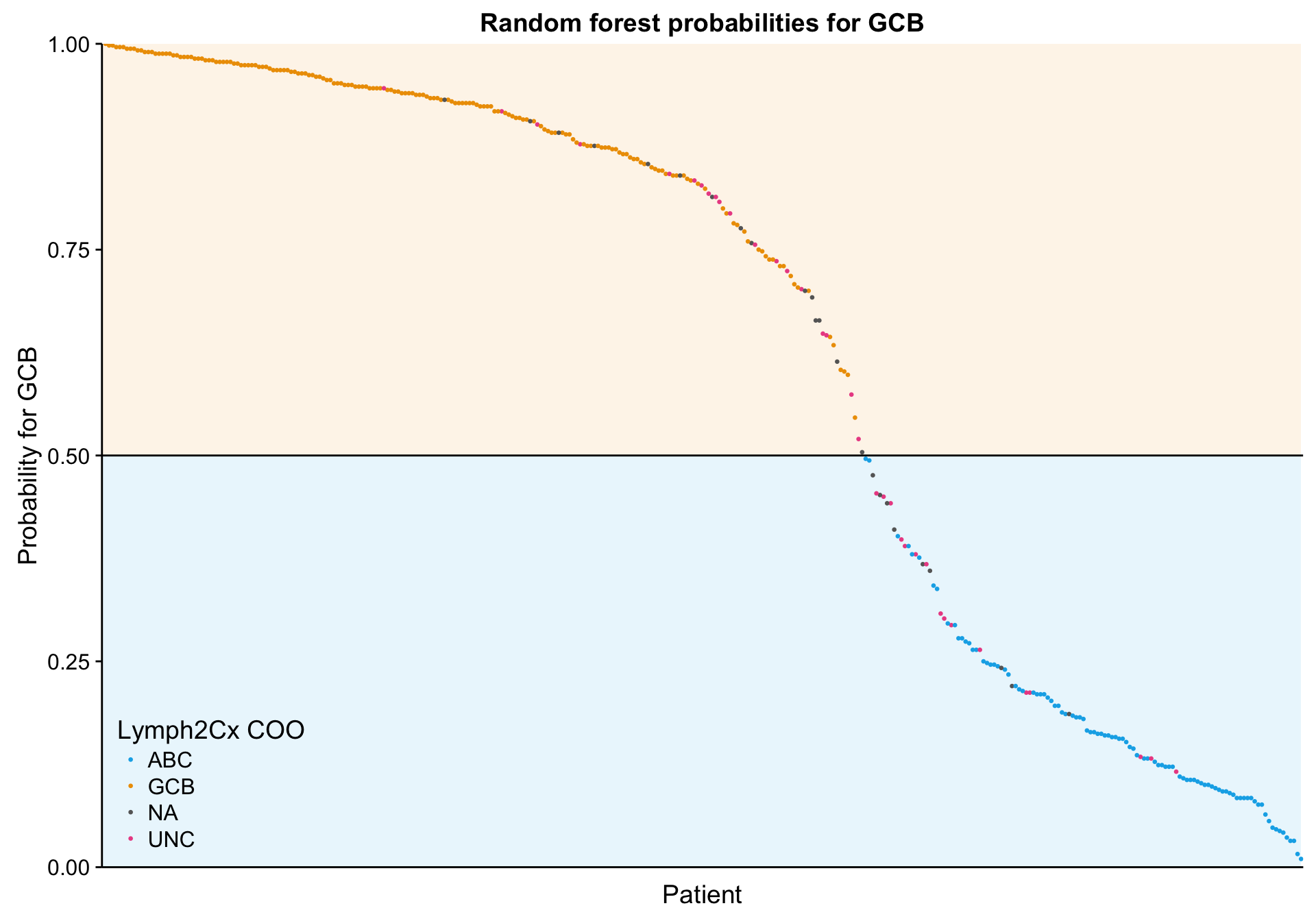

lineplot_mut_rf_prob <-
  predict(mut_model, mut_feat_df, "prob") %>%
  dplyr::bind_cols(mut_feat_df[,c("patient", "coo_ns")]) %>%
  tibble::rownames_to_column("id") %>%
  dplyr::ungroup() %>%
  dplyr::mutate(id = forcats::fct_reorder(id, ABC),
                prob = GCB) %>%
  ggplot(aes(x = id, y = prob, colour = coo)) +
    annotate("rect", xmin = 0, xmax = n_patients, ymin = 0, ymax = 0.5,
             fill = colours$coo["ABC"], alpha = 0.1) +
    annotate("rect", xmin = 0, xmax = n_patients, ymin = 0.5, ymax = 1,
             fill = colours$coo["GCB"], alpha = 0.1) +
    geom_point(aes(colour = coo_ns), size = 0.5) +
    geom_hline(yintercept = 0.5) +
    scale_color_manual(values = colours$coo) +
    place_legend(c(0, 0)) +
    scale_x_discrete(labels = NULL) +
    scale_y_continuous(limits = c(0, 1), expand = c(0, 0)) +
    theme(axis.ticks.x = element_blank()) +
    labs(title = "Random forest probabilities for GCB",
         x = "Patient", y = "Probability for GCB", colour = "Lymph2Cx COO")
lineplot_mut_rf_prob
