Stats

%Coverage Column Plots -

  On x-axis:unnormalized and normalized signals are rescaled to be percentages of the their respective max signal values (this is done so that they have same dynamic range and we can compare coverage as a function of % signal value).
  On y-axis: For a given x, y is the percent of peak called region that has rescaled signal value less than x.

Signal Column Plots -

  On x axis: Unscaled normalized signal values
  On y axis: Unscaled unnormalized signal values

Stats Column -

  Library
  Sample
  Mark
  Coverage (at 1% Normalized Signal Value) = From % coverage plot, y at normalized signal value 1
  Coverage (at 1% Unnormalized Signal Value) = From % coverage plot, y at unnormalized signal value 1
  Coverage (at 10% Normalized Signal Value) = From % coverage plot, y at normalized signal value 10
  Coverage (at 10% Unnormalized Signal Value) = From % coverage plot, y at unnormalized signal value 10
  Divergence point (where Normalized signal diverges from Unnormalized), from signal plots
  Coverage at divergence point = From % coverage plot, y at unnormalized signal value given by the divergence point
  Exact scaled unnormalized signal value at divergence point
  (the actual values of signals at 1% and 10% mark, this was inexact due to quantization)
  Exact scaled signal value (Normalized [~1%])
  Exact scaled signal value (Normalized [~10%])
  Exact scaled signal value (Unnormalized [~1%])
  Exact scaled signal value (Unnormalized [~10%])

%coverage signal stats
A26692
Human mammary cells
H3K4me1
Coverage (at 1% Normalized Signal Value) = 0.18
Coverage (at 1% Unnormalized Signal Value) = 15.75
Coverage (at 10% Normalized Signal Value) = 99.91
Coverage (at 10% Unnormalized Signal Value) = 99.99
Coverage at divergence point = 99.99
Divergence point (where normalized signal diverges from Unnormalized) = 143.0
Exact scaled signal value (Normalized [~1%]) = 1.11
Exact scaled signal value (Normalized [~10%]) = 10.04
Exact scaled signal value (Unnormalized [~1%]) = 1.06
Exact scaled signal value (Unnormalized [~10%]) = 10.03
Exact scaled unnormalized signal value at divergence point = 11.75

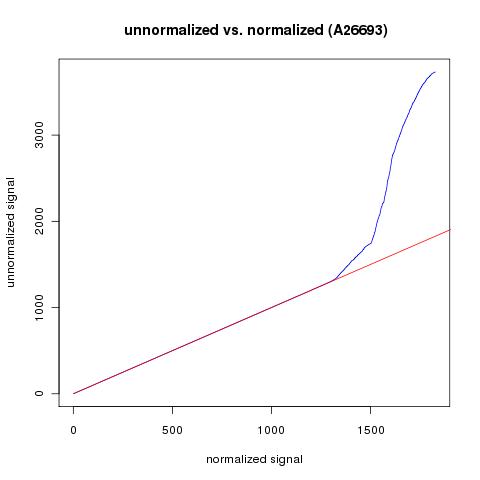

A26693
Human mammary cells
H3K4me3
Coverage (at 1% Normalized Signal Value) = 10.6
Coverage (at 1% Unnormalized Signal Value) = 29.79
Coverage (at 10% Normalized Signal Value) = 77.37
Coverage (at 10% Unnormalized Signal Value) = 99.41
Coverage at divergence point = 99.99
Divergence point (where normalized signal diverges from Unnormalized) = 1208.0
Exact scaled signal value (Normalized [~1%]) = 1.03
Exact scaled signal value (Normalized [~10%]) = 10.01
Exact scaled signal value (Unnormalized [~1%]) = 1.01
Exact scaled signal value (Unnormalized [~10%]) = 10.01
Exact scaled unnormalized signal value at divergence point = 32.36

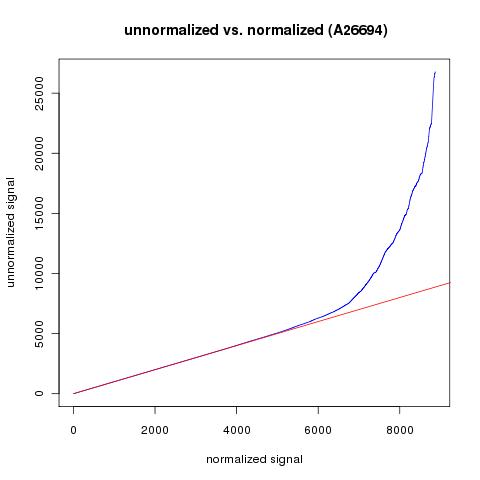

A26694
Human mammary cells
H3K9me3
Coverage (at 1% Normalized Signal Value) = 99.44
Coverage (at 1% Unnormalized Signal Value) = 99.78
Coverage (at 10% Normalized Signal Value) = 99.91
Coverage (at 10% Unnormalized Signal Value) = 99.97
Coverage at divergence point = 99.98
Divergence point (where normalized signal diverges from Unnormalized) = 3285.0
Exact scaled signal value (Normalized [~1%]) = 1.0
Exact scaled signal value (Normalized [~10%]) = 10.01
Exact scaled signal value (Unnormalized [~1%]) = 1.0
Exact scaled signal value (Unnormalized [~10%]) = 10.0
Exact scaled unnormalized signal value at divergence point = 12.27
A26695
Human mammary cells
H3K27me3
Coverage (at 1% Normalized Signal Value) = 73.71
Coverage (at 1% Unnormalized Signal Value) = 97.95
Coverage (at 10% Normalized Signal Value) = 99.38
Coverage (at 10% Unnormalized Signal Value) = 99.77
Coverage at divergence point = 99.86
Divergence point (where normalized signal diverges from Unnormalized) = 719.0
Exact scaled signal value (Normalized [~1%]) = 1.03
Exact scaled signal value (Normalized [~10%]) = 10.03
Exact scaled signal value (Unnormalized [~1%]) = 1.01
Exact scaled signal value (Unnormalized [~10%]) = 10.02
Exact scaled unnormalized signal value at divergence point = 16.19

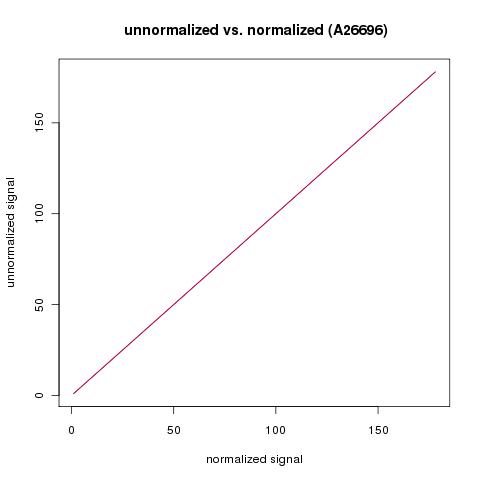

A26696
Human mammary cells
H3K36me3
Coverage (at 1% Normalized Signal Value) = 0.0
Coverage (at 1% Unnormalized Signal Value) = 0.0
Coverage (at 10% Normalized Signal Value) = 54.07
Coverage (at 10% Unnormalized Signal Value) = 54.07
Coverage at divergence point = None
Divergence point (where normalized signal diverges from Unnormalized) = None
Exact scaled signal value (Normalized [~1%]) = 1.12
Exact scaled signal value (Normalized [~10%]) = 10.11
Exact scaled signal value (Unnormalized [~1%]) = 1.12
Exact scaled signal value (Unnormalized [~10%]) = 10.11
Exact scaled unnormalized signal value at divergence point = None

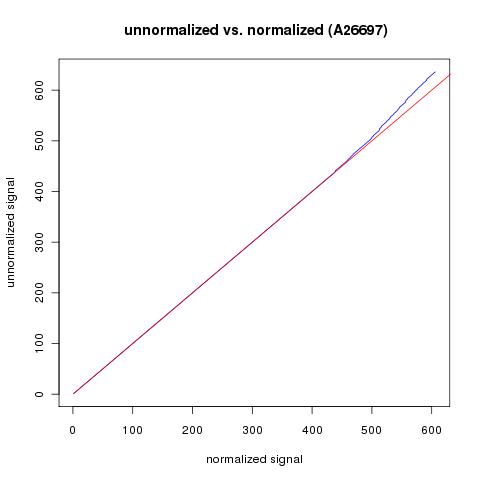

A26697
Human mammary cells
H3K27ac
Coverage (at 1% Normalized Signal Value) = 0.01
Coverage (at 1% Unnormalized Signal Value) = 0.01
Coverage (at 10% Normalized Signal Value) = 77.38
Coverage (at 10% Unnormalized Signal Value) = 79.1
Coverage at divergence point = 99.99
Divergence point (where normalized signal diverges from Unnormalized) = 441.0
Exact scaled signal value (Normalized [~1%]) = 1.15
Exact scaled signal value (Normalized [~10%]) = 10.06
Exact scaled signal value (Unnormalized [~1%]) = 1.1
Exact scaled signal value (Unnormalized [~10%]) = 10.06
Exact scaled unnormalized signal value at divergence point = 69.33
A26699
Human mammary cells
H3K4me1
Coverage (at 1% Normalized Signal Value) = 0.0
Coverage (at 1% Unnormalized Signal Value) = 0.0
Coverage (at 10% Normalized Signal Value) = 24.01
Coverage (at 10% Unnormalized Signal Value) = 24.01
Coverage at divergence point = None
Divergence point (where normalized signal diverges from Unnormalized) = None
Exact scaled signal value (Normalized [~1%]) = 1.68
Exact scaled signal value (Normalized [~10%]) = 10.08
Exact scaled signal value (Unnormalized [~1%]) = 1.68
Exact scaled signal value (Unnormalized [~10%]) = 10.08
Exact scaled unnormalized signal value at divergence point = None

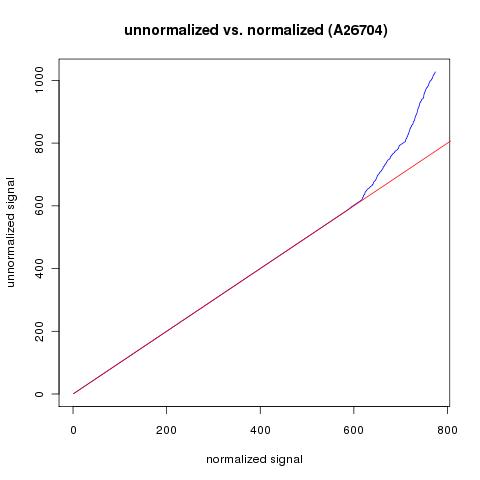

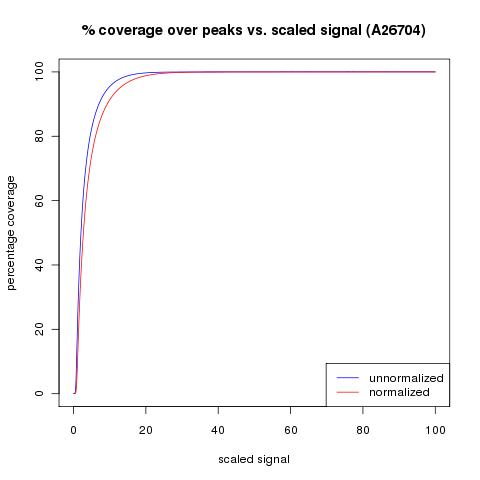

A26704
Human mammary cells
H3K27ac
Coverage (at 1% Normalized Signal Value) = 7.56
Coverage (at 1% Unnormalized Signal Value) = 20.14
Coverage (at 10% Normalized Signal Value) = 91.44
Coverage (at 10% Unnormalized Signal Value) = 95.5
Coverage at divergence point = 99.99
Divergence point (where normalized signal diverges from Unnormalized) = 591.0
Exact scaled signal value (Normalized [~1%]) = 1.03
Exact scaled signal value (Normalized [~10%]) = 10.07
Exact scaled signal value (Unnormalized [~1%]) = 1.07
Exact scaled signal value (Unnormalized [~10%]) = 10.02
Exact scaled unnormalized signal value at divergence point = 57.54

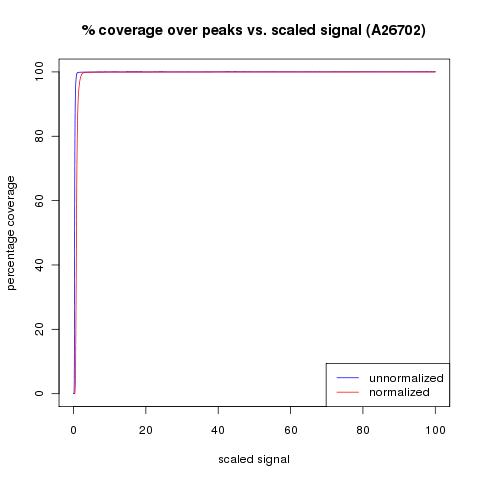

A26702
Human mammary cells
H3K27me3
Coverage (at 1% Normalized Signal Value) = 80.29
Coverage (at 1% Unnormalized Signal Value) = 99.66
Coverage (at 10% Normalized Signal Value) = 99.95
Coverage (at 10% Unnormalized Signal Value) = 99.97
Coverage at divergence point = 99.97
Divergence point (where normalized signal diverges from Unnormalized) = 305.0
Exact scaled signal value (Normalized [~1%]) = 1.04
Exact scaled signal value (Normalized [~10%]) = 10.02
Exact scaled signal value (Unnormalized [~1%]) = 1.02
Exact scaled signal value (Unnormalized [~10%]) = 10.01
Exact scaled unnormalized signal value at divergence point = 7.59

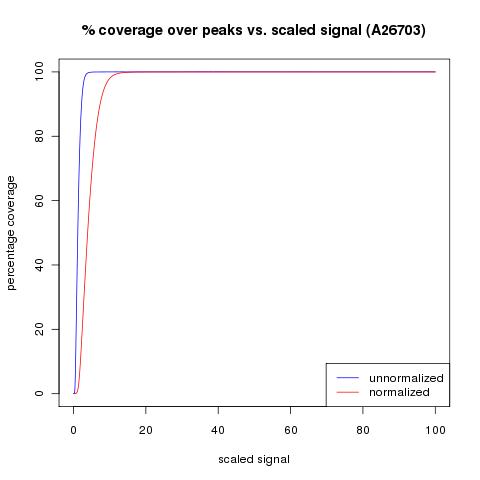

A26703
Human mammary cells
H3K36me3
Coverage (at 1% Normalized Signal Value) = 0.66
Coverage (at 1% Unnormalized Signal Value) = 40.84
Coverage (at 10% Normalized Signal Value) = 98.05
Coverage (at 10% Unnormalized Signal Value) = 99.99
Coverage at divergence point = 99.99
Divergence point (where normalized signal diverges from Unnormalized) = 204.0
Exact scaled signal value (Normalized [~1%]) = 1.07
Exact scaled signal value (Normalized [~10%]) = 10.06
Exact scaled signal value (Unnormalized [~1%]) = 1.03
Exact scaled signal value (Unnormalized [~10%]) = 10.03
Exact scaled unnormalized signal value at divergence point = 13.21

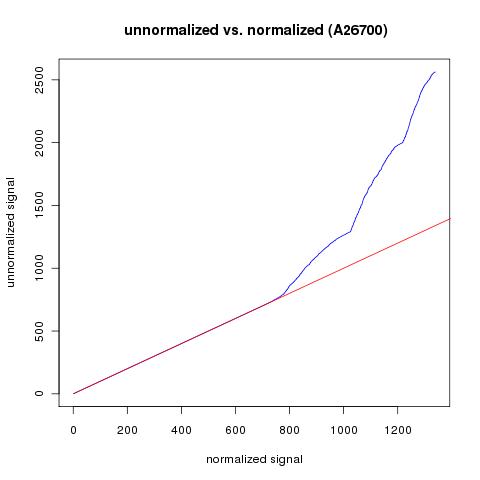

A26700
Human mammary cells
H3K4me3
Coverage (at 1% Normalized Signal Value) = 14.51
Coverage (at 1% Unnormalized Signal Value) = 31.2
Coverage (at 10% Normalized Signal Value) = 83.12
Coverage (at 10% Unnormalized Signal Value) = 99.65
Coverage at divergence point = 99.99
Divergence point (where normalized signal diverges from Unnormalized) = 717.0
Exact scaled signal value (Normalized [~1%]) = 1.04
Exact scaled signal value (Normalized [~10%]) = 10.0
Exact scaled signal value (Unnormalized [~1%]) = 1.01
Exact scaled signal value (Unnormalized [~10%]) = 10.02
Exact scaled unnormalized signal value at divergence point = 27.97

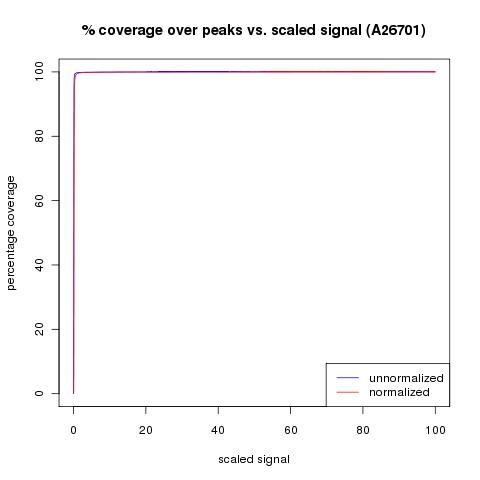

A26701
Human mammary cells
H3K9me3
Coverage (at 1% Normalized Signal Value) = 99.44
Coverage (at 1% Unnormalized Signal Value) = 99.74
Coverage (at 10% Normalized Signal Value) = 99.92
Coverage (at 10% Unnormalized Signal Value) = 99.96
Coverage at divergence point = 99.99
Divergence point (where normalized signal diverges from Unnormalized) = 4036.0
Exact scaled signal value (Normalized [~1%]) = 1.0
Exact scaled signal value (Normalized [~10%]) = 10.01
Exact scaled signal value (Unnormalized [~1%]) = 1.0
Exact scaled signal value (Unnormalized [~10%]) = 10.0
Exact scaled unnormalized signal value at divergence point = 23.67
